• Battery - 78 Amp-Hr
• Hill Start Assist
• Twin I-Beam Independent Front Suspension

• Steering - Tilt/Telescopic

• 4-Wheel Anti-Lock Disc Braking System
• Electronic Stability Cntrl
• Traction Control

790A

Spare Tire and Wheel

Right Hand Door Delete

• Alternator Type: Heavy-duty alternator
• Battery type: Heavy-duty lead acid battery
• Radiator
• Powertrain type: ICE
• Drive type: Rear-wheel drive
• Traction control: All-speed ABS and driveline traction control
• Suspension: Standard ride suspension
• Suspension ride type front: Independent front suspension
• Front anti-roll: Front anti-roll bar
• Springs front: Front coil springs
• Shock absorbers: Heavy-duty gas-pressurized shock absorbers
• Suspension ride type rear: Rigid axle rear suspension
• Rear anti-roll: Rear anti-roll bar
• Springs rear: Rear leaf springs
• Rear Springs: Regular grade rear springs
• Steering: Hydraulic power-assist steering system
• Steering type: Re-circulating ball steering
• Ventilated brakes: Front ventilated disc brakes
• ABS Brakes: Three channel ABS brakes
• Suspension type rear: Leaf spring rear suspension
• Tailpipe: Stainless steel single exhaust
• Electronic stability control: Electronic stability control system
• Brake type: 4-wheel disc brakes
• ABS Brakes: 4-wheel antilock (ABS) brakes
• Running lights: Daytime running lights
• Instrumentation display: Analog instrumentation display
• Vehicle tracker
• Hill start assist
• DRL preference setting
• Seating capacity: 1
• Gearshifter material: Urethane gear shifter material
• Steering wheel material: Urethane steering wheel
• Steering wheel tilt: Manual tilting steering wheel
• Steering wheel telescopic: Manual telescopic steering wheel
• Oil pressure gauge
• Engine/electric motor temperature gauge
• Voltmeter
• Service interval warning: Service interval indicator
• Wipers: Variable intermittent front windshield wipers
• Driver information center
• Ignition type: Mechanical
• Basic warranty: 36 month/36
• 000 miles
• Powertrain warranty: 60 month/60
• 000 miles
• Corrosion perforation warranty: 60 month/unlimited
• Roadside warranty: 60 month/60
• 000 miles
• Dual Rear Wheels: Dual rear wheels
• Mobile app access
• Order Code 790A - Includes ELEC 6-SPD AOD W/TOW-HAUL
• Transmission: 6-speed automatic
• Overdrive transmission
• Selectable mode transmission
• Lock-up transmission
• Transmission Type: Automatic
• Radio Delete
• .LT225/75R16E DRW HANKOOK
• Tires: LT225/75SR16 AS BSW 709 RPM front and rear tires
• 14500# GVWR PACKAGE
• 16X6 WHITE PAINTED STEEL WHLS
• Seats Not Included
• Seats Not Included (no Pedestal)
• 7.3L V8 PREMIUM-RATED ENG.
• Engine Location: Front mounted engine
• Fuel Type: Regular unleaded
• Ignition: Spark ignition system
• Engine Mounting direction: Longitudinal mounted engine
• Engine block material: Iron engine block
• Cylinder head material: Aluminum cylinder head
• Engine: 7.3L V-8 variable valve control
• regular gasoline
• engine with 325HP
• Engine Short: 7.3L V-8
• Engine Configuration: V8
• 50 STATE EMISSIONS - Includes Emissions: Federal emissions
• Emissions tiers: Tier 2 Bin 8 emissions
• SPARE TIRE/WHEEL - Includes Spare tire: Full-size spare tire with steel wheel
• Spare tire location: Spare tire mounted on the frame or chassis
• CRUISE CONTROL - Includes Cruise control: Cruise control with steering wheel mounted controls
• AIR CONDITIONING
• PREP - Includes Climate control: Air conditioning provision
• Air conditioning: Yes
• EMBEDDED MODEM DELETE
• FRONT MAX GAWR
• 4.56 LIMITED SLIP AXLE XF3 - Includes Limited slip differential: Mechanical limited slip differential

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 4877
• Base Curb Weight (lbs): 4805
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 2531
• Curb Weight - Rear (lbs): 2274
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 22000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T68
• Rear Tire Order Code: T68
• Spare Tire Order Code: 51A
• Front Tire Size: LT225/75SR16
• Rear Tire Size: LT225/75SR16
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 5000
• Rear Tire Capacity (lbs): 9880
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 X 6
• Rear Wheel Size (in): 16 X 6
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall (in): 252.7
• Overhang, Rear w/o bumper (in): 68.5
• Interior Dimensions
• Passenger Capacity: 1
• Summary

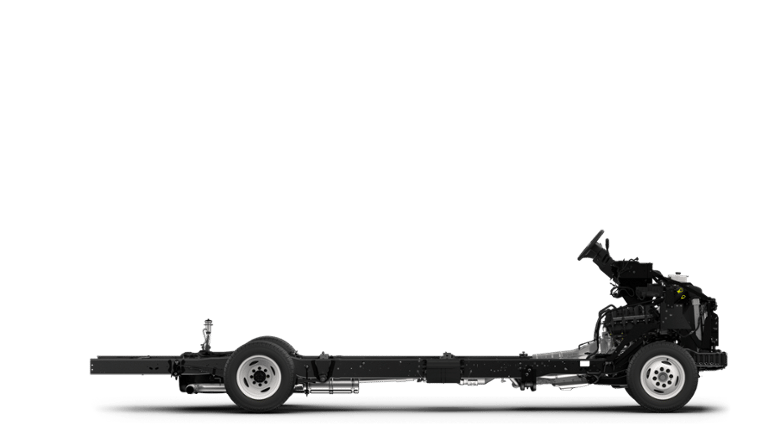

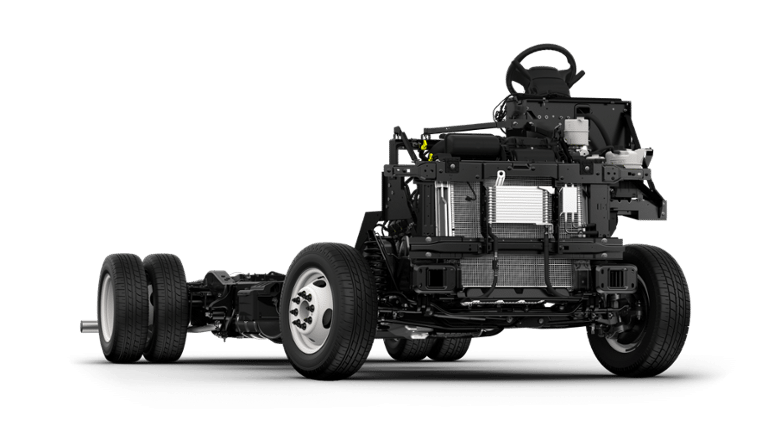

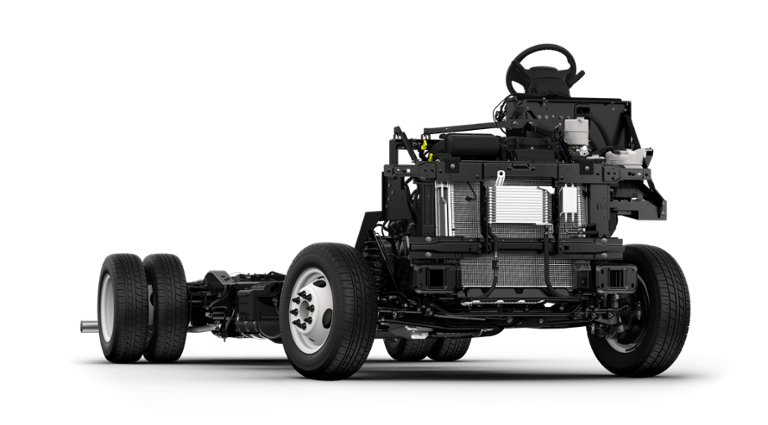

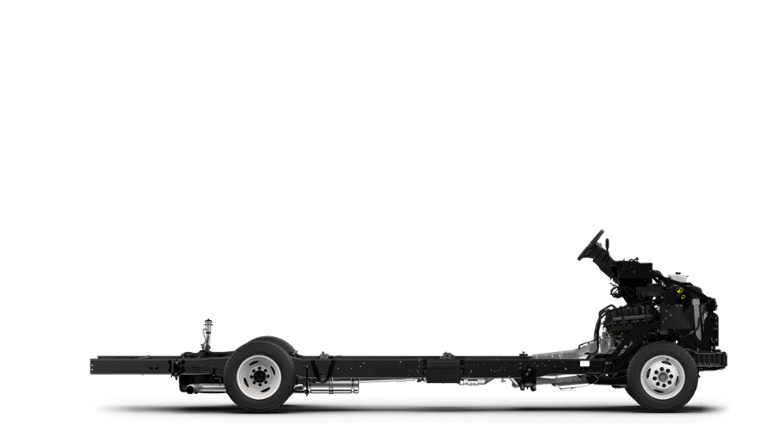

• Vehicle Name: Ford E-Series Stripped Chassis
• Body Style: Chassis
• Body Code: H
